Airbus EC145 / H145 / H145M / BK117
Snap-On Standard H135/H145 Tool Kit
#SNAPONSTDKIT145
$RFQ
Includes all tools necessary for mechanical operations. These were spec’d out by Snap-On Europe, and were not updated to reflect the new tooling since. Snap-On will be re-starting the kits here and they will be available in the US. Note: There is a 6-8 week availability and the customer will have final approval of CAD layout and can add or remove anything from these sets before ordering (Detailed list of tools will be linked here shortly.)
Interested in this product or want more information? Contact us.
Precision Instruments -Dial Type Torque Wrenches
$RFQ
Need a precision dial type torque wrench? We have partnered with the manufacturer that supplied many major tool brands that simply re-branded them. We offer them here at a low cost and calibration certificates are available. Please see the attached brochure HERE or contact us for a particular size, range, and quote.
Interested in this product or want more information? Contact us.

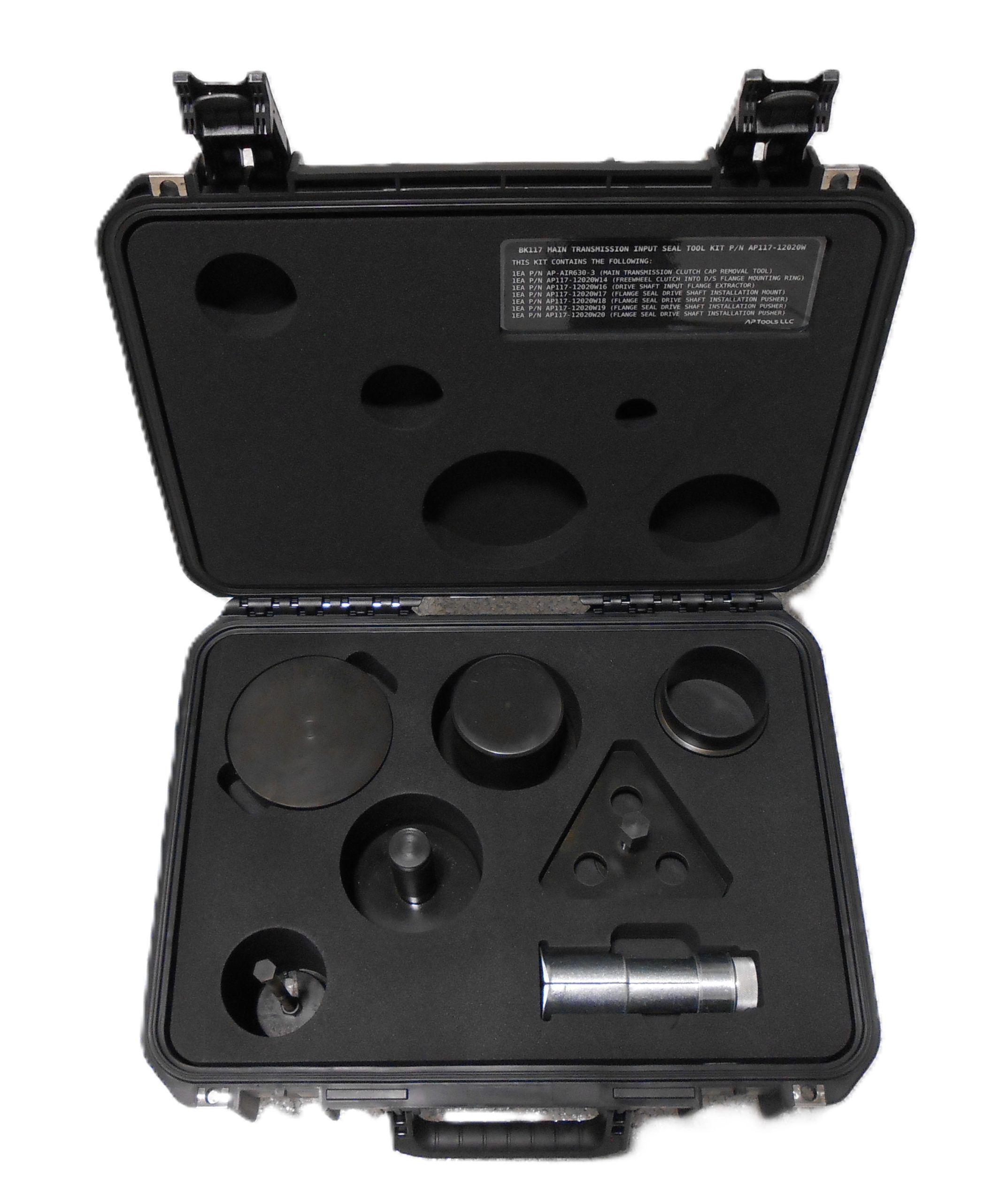

Main Transmission Freewheel Clutch / Seal Tool Kit
#AP117-12020W
$RFQ
This is a complete kit comprised of the required tools to replace the main transmission freewheel clutch input seals. Each individual tool can be purchased on its own but may require a lead time. See the kit details and individual tools HERE (Note: Only the complete kit will come in a case). Reference P/N 117-12020W | Airbus
Interested in this product or want more information? Contact us.
Bendix Input Shaft Wrench
#AP105-60701W6
$549
Applicable to BK117, H145, H135, and BO105. Comes as pictured. Reference P/N 105-60701W6 | Airbus
Interested in this product or want more information? Contact us.
BK117 C2 Main Transmission Freewheel Clutch Cap Removal Tool
#AP-AIR630-3
$429
Just turn the knob to expand the ears into the slots of the cap, then simply pull by hand to overcome the o-ring friction force for removal. (Picture is generic)
Interested in this product or want more information? Contact us.
Main Rotor Blade Mounting Tool Kit
#AP117-15004W6
$RFQ
Used to remove and install bushings of main rotor blade fittings. Kit will come in a case. Reference P/N 117-15004W6 | Airbus
Interested in this product or want more information? Contact us.
BK117/BO105 Main Rotor Blade Folding Lock Kit
#AP-AIR660-1
$4,895
Our kit will facilitate swinging two rotor blades into the swept fwd / aft positions and hold them with “U” pins. (Note: Kit contains case, 2ea blade “U” pin locks, and 2ea “T” pin hub lock assemblies only. Not for permanent installation or flight operations.)
Interested in this product or want more information? Contact us.
Pushing-Out Tool
#AP117-80168W1
$1,195
3pc tool set for pushing out the pins of the pendulum absorber (2.400 Fh) Reference P/N 117-80168W1 | Airbus
Interested in this product or want more information? Contact us.
Mounting Tool
#AP117-80168W2
$889
2pc tool set for installation of pendulum absorber bearings (2.400 Fh) Reference P/N 117-80168W2 | Airbus
Interested in this product or want more information? Contact us.
Airbus BK117 Main Rotor Primary Bolt DU-Guard Washer Bonding Tool
#117/105-15103W6ALT
$264
Used for bonding the DU-Guard Washers on the blade primary bolt hole.
Reference P/N 105-15103W6 | Airbus
Interested in this product or want more information? Contact us.

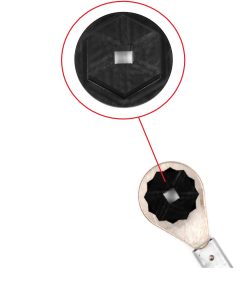

Main Rotor Blade Torque Wrench Calibration Adaptor
#AP105-13101W8A
$289
Our calibration adaptor will allow a shop to calibrate the 105-13101W8 torque wrench via a 1/2″ square drive. Torque wrench not included.
Interested in this product or want more information? Contact us.
BK117 / BO105 Main Rotor Hub Nut Torque Adapter
#APS6150
$83
This thin sidewall, ½” drive torque adapter will enable the installation and removal of the old style BK117/BO105 hub nuts. Made in USA.
Interested in this product or want more information? Contact us.
Needle Bearings Extractor
#AP105-14181W3
$993
Device to remove needle bearings of Main Rotor Head. Reference P/N 105-14181W3 | Airbus
Interested in this product or want more information? Contact us.
Airbus EC145, H145 / EC135, H135 Hydraulic Pressure Test Gauge
#AP-AIR290-4
$489
The test gauge is used as an external means to measure the hydraulic pressure from 0-160 bar. Comes standard with 8 feet of hose and padded storage case. Reference P/N L135M2904101 | Airbus
Interested in this product or want more information? Contact us.
Hydraulic Valve Block Test Tool (Analog)
#AP-AIR290-5
$3,985
Everything you need to functional test the valve block / reservoir in the hydraulic power system. Our kit is equipped with an Enerpac, 2ea quick-change analog manometers, required hydraulic plugs, caps, aircraft hose with adapter, and secured in a custom USA made case. Gauge calibration certifications are traceable to NIST by manufacturer and ready to go. Reference P/N L290P7002101 | Airbus
Interested in this product or want more information? Contact us.
Airbus EC145, H145 / BK117 C2, C2e / EC135, H135 Hydraulic Reservoir De-Servicing Tool
#AP-AIR290-3
$559
- Industrial / commercial quality
- Applicable to H145 / BK117 C2, C2e / UH-72 / H135
- Comes in a custom foam fitted and waterproof SKB i series case
- Made of steel and other choice metal components
- Revised ergonomic, parkarized wheel
- Special ACME threading for easier linear movement
- Works even if reservoir is serviced past “full”
Interested in this product or want more information? Contact us.
Hydraulic Reservoir Servicing Package
#AP-AIR120-2PKG
$2,104
Includes our new all-weather hydraulic service pump with integrated 3 micron filter, Airbus EC135, H135 / EC145, H145 / BK117C2 airframe coupler, and 11′ hose. An optional translucid hose is available in place of the black one. This allows the user to confirm air is purged from the line, but it comes at a trade off since the hose material is not quite as durable. Please specify which hose you would like when ordering. If none are specified, the default will be the heavy duty black.
Interested in this product or want more information? Contact us.
Hydraulic Reservoir De-Servicing Drain Tool
#AP-AIR120-3
$199
Airbus EC135, H135 / EC145, H145 / BK117C2 airframe coupler, 4′ hose, and 16oz drain bottle. Easily handle this set-up and bleed / drain one reservoir at a time as needed. Compare to Airbus bleeding unit part # L135M2903101. By far, another best deal around.
Interested in this product or want more information? Contact us.
Goodrich Hoist Tooling
$RFQ
We can supply Goodrich® Hoist and Winch tooling. Get in touch with us for your specific model application.
Interested in this product or want more information? Contact us.
EC145 Electrical Fuzz Burner Test Weight
#AP-AIR880-1
$175
A majority of the EC145’s are equipped with electrical fuzz burners instead of the standard mechanical chip detectors. These fuzz burners require a different test weight manufactured as per technical information letter EC145 017-2010.
Interested in this product or want more information? Contact us.

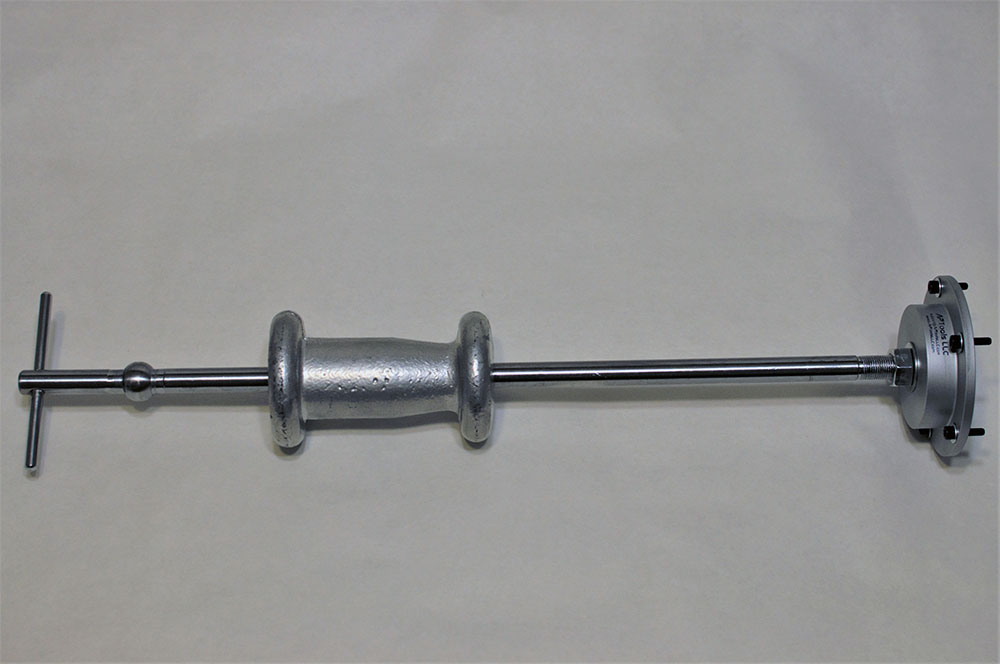

Airbus EC145, H145 / BK117 C2, C2e Lower Transmission Case Cover Puller
#AP-AIR630-2
$395
Our version of this tool has an adaptor machined from a solid round and more robust.
Interested in this product or want more information? Contact us.

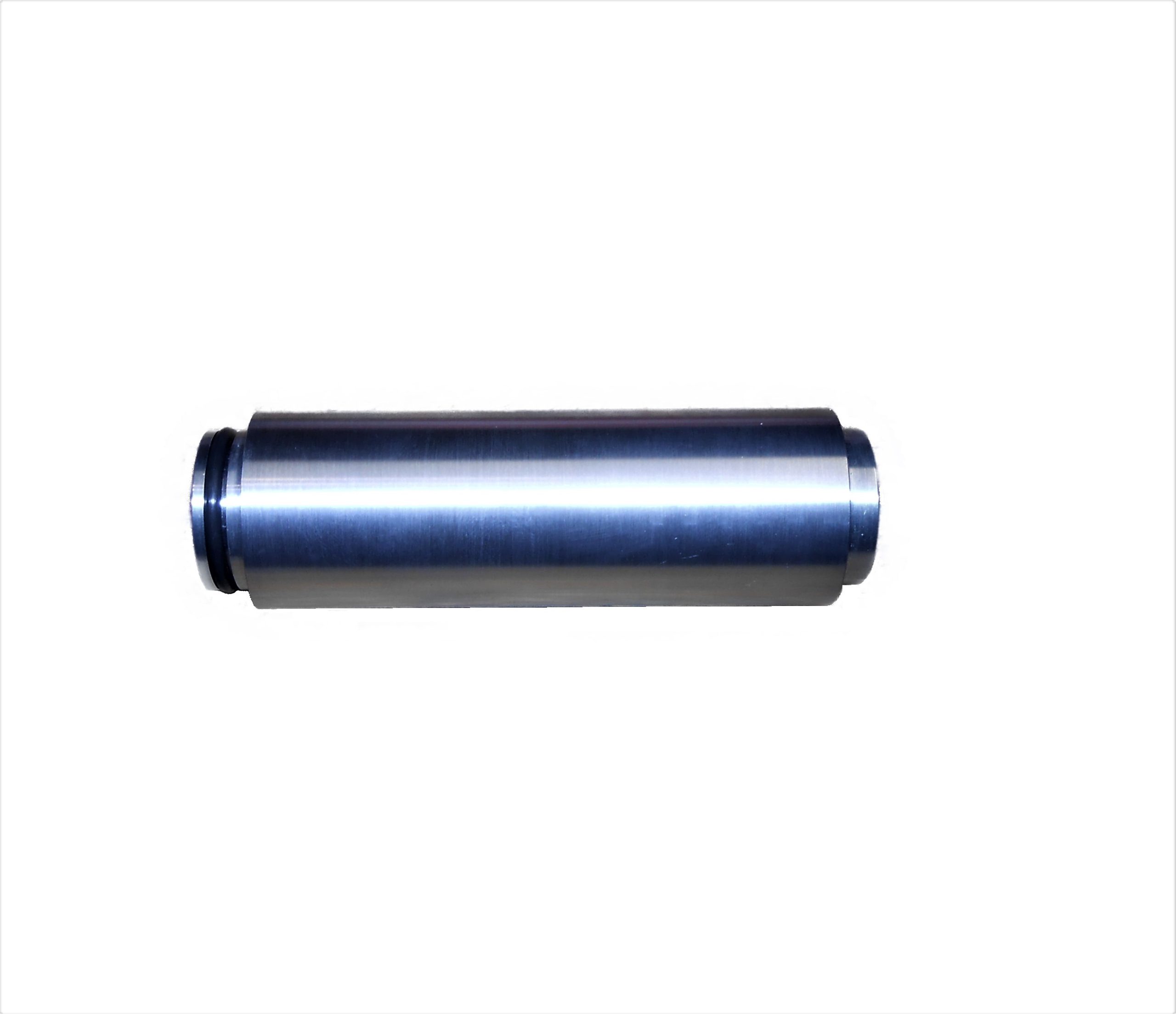

Airbus BK117 C2, C2e Dummy Filter for Main Transmission
#BK39
$295
Interested in this product or want more information? Contact us.
Airbus EC145, H145 / BK117 A, B, C1, C2, C2e Jettisonable Sliding Door Locking Threaded Rod
#BKAMM2-9
$22
Interested in this product or want more information? Contact us.
Starter / Generator Bench Block
#AP-GOO800-4
$110
The starter / generator is held inverted on the dampener plate bushing for fast brush inspections. It can be rotated by hand 360 degrees easily, without having to wrestle it all over the bench or the flight line. Also features flats on the sides for use in a vise. Made of solid plastic.
Interested in this product or want more information? Contact us.
Fuel Pump Cartridge Removal Tool
#APE2-10-1
$168
Built using the OE specifications, this puller will also work to pull any fuel cartridge with 7/16-20 threads. Reference P/N E2-10-1 | Airborne | Parker
Interested in this product or want more information? Contact us.
Fuel Pump Cartridge Puller Adapter
#APE2-14-1
$31
Built using the OE specifications, this adapter is used for some disassembly of the fuel pump. Reference P/N E2-14-1 | Airborne | Parker
Interested in this product or want more information? Contact us.

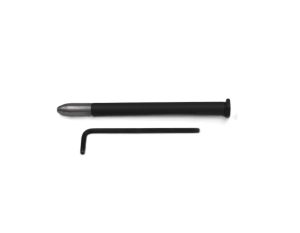

BK117 Tail Rotor Head Main Bolt Sleeve Guide
#AP-AIR640-1
$195
Commonly referred to as “alignment bullets”, our design incorporates a hex drive to remove the guide from the bolt with an Allen wrench (Bolt and Allen wrench not included). Reference P/N 117-31713W1 | Airbus
Interested in this product or want more information? Contact us.
Start Switch Removal and Installation Socket
#AP-AIR240-1
$41
Accommodates a 1/4″ drive ratchet / screwdriver to properly remove and install the serrated nut on French manufactured switches (normally marked with a bullseye on the toggle). These types of switches are usually the start switch in Airbus aircraft. Comes mil-spec phosphate coated.
Switch, nut, and screwdriver not included.
Interested in this product or want more information? Contact us.
