Beechcraft Flap Roller Lubrication Tool
This fixture can be used to lubricate the ¾” flap roller bearings with a simple grease gun. Both large and small flange type bearings can be serviced for periodic maintenance manual requirements. Overall task takes only seconds for a completely lubricated bearing.(Roller bearing not included)
Beechcraft Wing Bolt / Nut Torque Adaptor
Identical to the TS1176/D917 torque adapter, it includes an interchangeable ¾” socket cap in addition to the ½” square drive to accommodate a multitude of sockets in one tool. It can be configured into at least 8 Beechcraft tool part numbers according to Communique No’s 33 and 99-003 (Reference Beechcraft part numbers: TS1176/D917, TS1171-1, 50-590013, TS1176-6, TS1176-7, TS1176-10, TS1171-8, and TS1176-11)
Fuel Pump Cartridge Removal Tool
Built using the OE specifications, this puller will also work to pull any fuel cartridge with 7/16-20 threads. Reference P/N E2-10-1 | Airborne | Parker
Trim Tab Freeplay Check Fixture
Built referencing the Beechcraft drawing, we sourced a vendor to supply a high-quality alternate with a drop dial indicator. (Reference Beechcraft P/N: 45-135030-9/810)
10 lbs Force Gauge
Required for use with trim tab freeplay checks. Contact us for curent lead time and price.

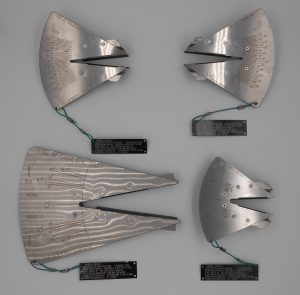

Beechcraft 1900 Travel Board Rentals
- 1. Aileron Tab Travel Gauge | Part # 810-2 118-130000-1 ($295)
- 2. Rudder Tab Travel Gauge | Part # 810-2 114-630000-1 ($295)
- 3. Elevator Tab Travel Gauge | Part # 810-2 101-610000-2 ($295)

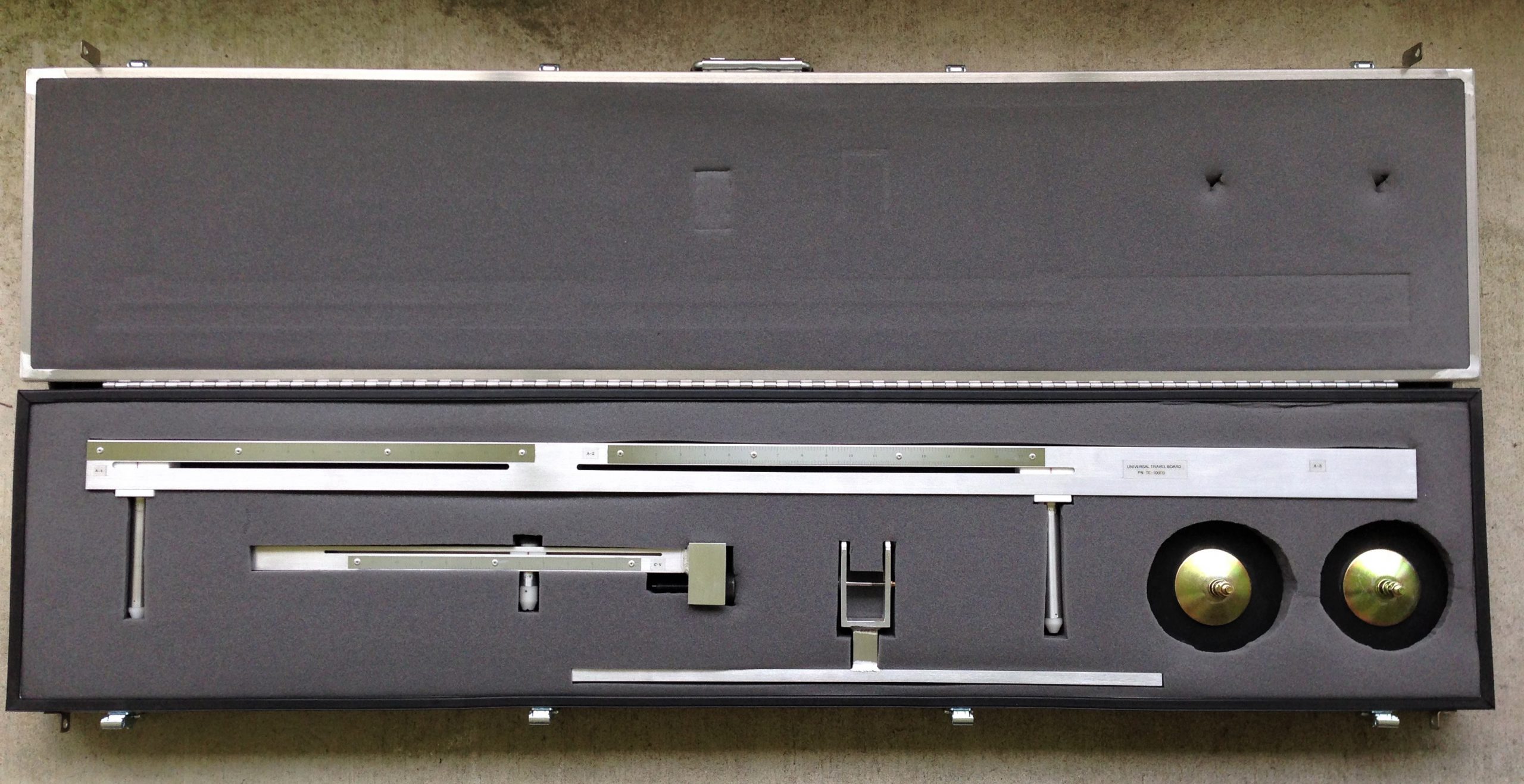

1900D Complete Travel Board Set
Discontinued. Please contact us for alternate solutions.
1900 Series Flight Control Rigging Alignment Pin Set
Pins the control surfaces for rigging and cable tension checks. Set comes with storage case and 5 pins, that includes an NAS1756-24 red streamer, lanyard, and ID tag attached to each. These are built using the drawings and data from Beechcraft and will come with a COC. A lead time may apply.
Wheel Half Compressor Kit
This high quality tool will save you time and frustration when trying to assemble wheel halves over a tire, in hopes of getting it bolted together (usually with two people). It features 4 1/2” padded discs and two sizes of alignment pins for a variety of wheels. Comes complete in a storage box.
Beechcraft Nose Strut Extension Limiter Assembly
Limits the extension of the nose strut (Reference Beechcraft P/N: 115-590035). We can also manufacture the hardwood strut collars from your maintenance manual.
Feedback Ring Puller W/Swivel Head for 3 & 4 Blade Propellers (TK1573 series)
This puller has a dual 3 and 4 blade attachment pattern on 2 individual bolt circles with applicable small diameter swivel pusher cup. Included are 4 threaded short rods with custom machined forks and all associated wingnuts and washers. Reference P/N TK1573-918, TK1573-918-1 (NOT UE) | Beechcraft
Large Universal Turbine Beta Ring Puller W/Swivel Head for 3, 4, & 5 Blade Propellers
This puller is drilled for a 3-5 blade attachment pattern on 3 individual bolt circles for motor size flexibility. The main shaft has 5” of travel and is driven by a 6″ removable handle. The pushing cap has a non-removable free spinning swivel head with a large inside diameter cup. Included are 5 threaded long rods with modified mounting couplers, 5 threaded short rods with custom machined forks and all associated wingnuts and washers. Fits popular Pilatus, B1900, and Meridian Piper. Reference P/N CS-2987 | Hartzell
Propeller Torque Adapter Wrenches
- 1. Size: 9/16” | Part # APYOR-610-916 ($149)
- 2. Size: 5/8” | Part # APYOR-610-58 ($149)
- 3. Size: 11/16” | Part # APYOR-610-1116 (Ref: AST-2877-2)($149)
- 4. Size: 11/16” | Part # AP-HAR610-1 (Ref: AST-2877-3)($689)
- 5. Size: 3/4” | Part # APYOR-610-34 ($149)
- 6. Size 7/8″ | Part #APYOR-610-78 ($149)
B1900 Windshield Wiper Tension Tool
This is our substitute for the necessary OEM P/N: XW20509 / 02314-0023-0001 tool called out in the maintenance manual of various Beech aircraft. We have seen some middle-man suppliers try to charge over $2000 for these, which is ridiculous. We offer it at a reasonably low price.
Starter / Generator Bench Block
The starter / generator is held inverted on the dampener plate bushing for maintenance. It can be rotated by hand 360 degrees easily, without having to wrestle it all over the bench or the flight line. Also features flats on the sides for use in a vise. Made of solid plastic.
