Avionics
Complete Electronic Battery Analyzer & Charging System
#SB24-00-CEBACS
$4,895
This unit charges a power supply/battery while testing and monitoring another one. Specifically designed to measure capacitance of smaller standby power supplies and battery packs, it is capable of supplying up to a 100 watt load for discharge/resistance tests. It can perform tests up to 4.1-amps for 24-volt units and up to 8.2 amps for 12-volt units in an hour. The software allows for testing at higher C ratings and will calculate proper capacitance accordingly (e.g., a 24 volt 8ah(192 watts/hr) battery can be tested at 4 amps(96 watts/hr) for 2 hours passing with 80% capacity at 96 minutes). | Manufactured by Shock Box
The Complete EBACS Ships with:
- 3-prong AC power cord
- Universal test leads for charging and discharging
- Custom adapter for testing/charging PS-835, 850 & 855 power supplies
- USB flash drive for transferring of data
- USB keyboard/mouse combo
- Strap for securing during testing
- Attached pouch for storage of leads
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/Complete-EBACS-Electronic-Battery-Analyzer_Charging-System-1024x1024-1-300x300.png)
Electronic Battery Analyzer
#SB24-00-EBA
$2,995
The EBA (Electronic Battery Analyzer) is the big brother to BFG test box. Where the BFG was designed specifically to perform capacitance tests on the PS-835, PS-850 and PS-855 power supplies and has to be monitored by a technician for the duration of a capacitance test, the EBA can do that and a whole lot more. The EBA even does the monitoring for you, freeing you up to do other tasks. It is a computer based capacitance test box that connects to any Windows XP or higher computer via an available USB port. The EBA comes with two harnesses, the first being the adapter plug for the PS Series and the second being a universal harness (shown) that greatly expands its capabilities. | Manufactured by Shock Box
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/EBA-Electronic-Battery-Analyzer-300x300.png)
BFG PS-835, PS-850 And PS-855 Capacitance Test Box
#SB24-03-835
$2,495
The BFG test box was designed to be simple enough that anyone could use it and cheap enough that the smallest maintenance shops could afford it. It is designed to perform the capacitance test on Jet/BFGoodrich/L3 Communications PS-835, PS-850 and PS-855 standby power supplies. With its front mounted jacks it can be connected to a benchtop DC power supply and utilized to charge these power supplies. It has the correct mating connector to simply plug straight into the back of these model power supplies. Simply plug it in and then select the “TEST” position of the front panel selector switch and start a stop-watch. You simply watch the voltage and the stop watch. It can’t be any simpler. If you’re looking for a more automated process, check the EBA Capacitance Test Box above. | Manufactured by Shock Box
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/BFG-PS-835-PS-850-PS-855-Cap-Test-Box-300x300.png)
PS-834A/B Capacitance Test Box
#SB24-01-834
$2,495
The PS-834 Capacitance Test Box is exactly that! In addition to performing the capacitance test, it performs a functional test of the power supply as described in the L3 Communications Component Maintenance Manual. It comes with front mounted panel jacks to connect to a benchtop DC power supply for charging of the power supply. The test box comes equipped with the correct connector to connect directly to the power supply being tested. The PS-834 power supplies are usually found in Cessna 525 Citation Jet and Piper PA-46 series aircraft. | Manufactured by Shock Box
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/PS-834_Test_Box-300x300.png)

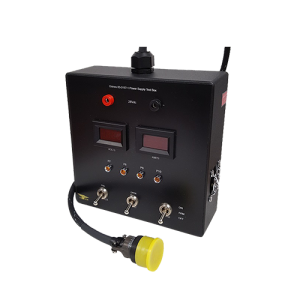

Grimes 60-3157-1 Capacitance Test Box
#SB24-01-G6031571
$2,495
The 60-3157-1 Capacitance Test Box is designed in compliance with the Beechjet 400 Maintenance Manual. It is designed to perform the capacitance test on the Grimes power supplies mounted behind the cabin headliner of the Beech 400/400A aircraft. Instructions on how to use the test box are included in the BeechJet 400/400A Maintenance Manual for the system test. Applicable to aircraft serial numbers RJ-1 and after, RK-1 thru RK-109 (Except RK-98)
The 60-3157-1 is also used on Airbus A300 series aircraft. | Manufactured by Shock Box
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/Grimes_60-3157-1_Cap_Test-300x300.png)

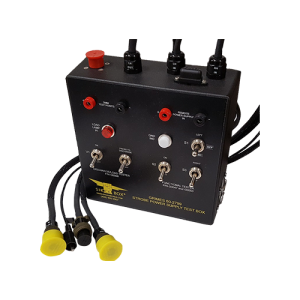

Grimes 60-2799 Series Strobe Power Supply Test Box
#SB33-01-G0056/G0047
$2,495
This strobe power supply test box contains the equivalent of Grimes G0056 Discharge Load Tester and G0047 Functional Tester in a single unit. Utilize this test box along with your Grimes Component Maintenance Manual to troubleshoot and repair these power supplies. | Manufactured by Shock Box
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/Grimes_Strobe_Power_Supply_Test_Box-300x300.png)
Grimes Test Strobe
#SB33-01-STROBE
$1,695
To aid in troubleshooting Grimes strobe systems when you aren’t sure if you have a bad strobe or a bad power supply. Disconnect the inoperative strobe and connect our test strobe. If the test strobe doesn’t work, then you probably have a power supply problem. The strobe light is protected by a vented cast aluminum enclosure to protect from the rough environment of aircraft maintenance, yet is still highly visible. | Manufactured by Shock Box
Interested in this product or want more information? Contact us.
![](https://aptoolsllc.com/wp17/wp-content/uploads/2024/06/Grimes_Strobe_Light_Test_Box-300x300.png)
Emergency Locator Beacon Battery Cover Wrench
#AP-ULB250-1
$489
This spanner wrench is required to remove the access cover to change the lithium battery in the Dukane DK120 / DK140 and ELP-362D type Underwater Acoustic Beacons. Reference P/N 810-325 | Dukane
Interested in this product or want more information? Contact us.
French Switch Removal and Installation Socket
#AP-AIR240-1
$39
Accommodates a 1/4″ drive ratchet / screwdriver to properly remove and install the serrated nut on French manufactured switches (normally marked with a bullseye on the toggle). These types of switches are found in Dassault and Airbus aircraft (Airbus helicopters and A320 family fixed-wing). Comes phosphate coated.
Switch, nut, and screwdriver not included.
Interested in this product or want more information? Contact us.
