Bell 206 Tools

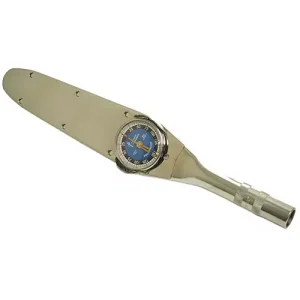

Precision Instruments -Dial Type Torque Wrenches
$RFQ
Need a precision dial type torque wrench? We have partnered with the manufacturer that supplied many major tool brands that simply re-branded them. We offer them here at a low cost and calibration certificates are available. Please see the attached brochure HERE or contact us for a particular size, range, and quote.
Interested in this product or want more information? Contact us.

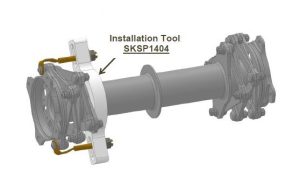

KAflex Driveshaft Removal and Installation Tool
#SKSP1404-1
$1107
Required tool for removal and installation of the KAflex main drive shaft on 206A/B – 206L1/L3. These are also made by the driveshaft manufacturer and should not present any warranty voiding issues. All certification paperwork will follow. Drive shaft obviously not included.
Interested in this product or want more information? Contact us.

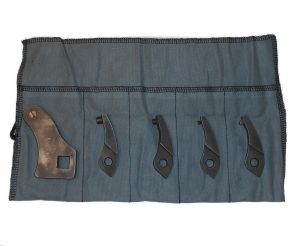

½” Drive Spanner Wrench Set
#AN8515-1
$395
Used to remove and install the pinion nut and specified throughout the AMM and CRO manuals. Comes with all shown attachments and tool pouch. Reference P/N AN8515-1 | Bell
Interested in this product or want more information? Contact us.

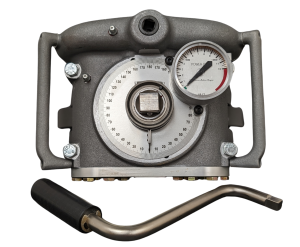

Power-Dyne Torque Multiplier
#PD1201
$RFQ
Used to apply high torque required by some maintenance and overhaul tasks. Reference P/N PD1201 | Bell
Interested in this product or want more information? Contact us.

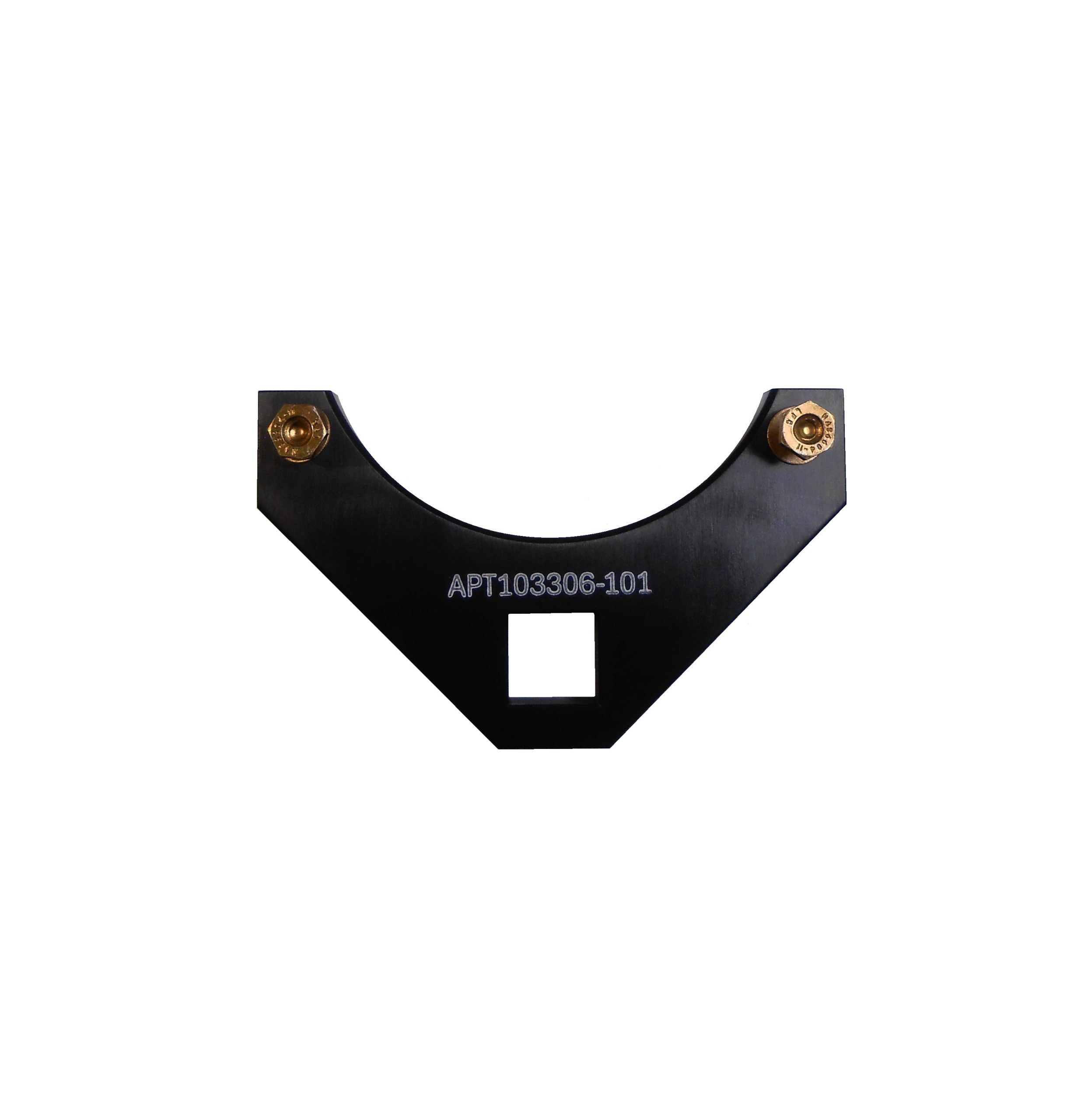

Input Adapter Spanner Set
#APT103306-101
$329
Used to restrain the 406-040-542 and 406-040-070 adapters while torquing their remaining bolts. Reference P/N T103306-101 | Bell
Interested in this product or want more information? Contact us.
Freewheel Assembly Seal Installation / Removal Tool
#APT103307-101
$489
Used to install and remove the 406-040-581 face seal from the 406-040-543 nut. This is an OEM tool. Reference P/N T103307-101 | Bell
Interested in this product or want more information? Contact us.

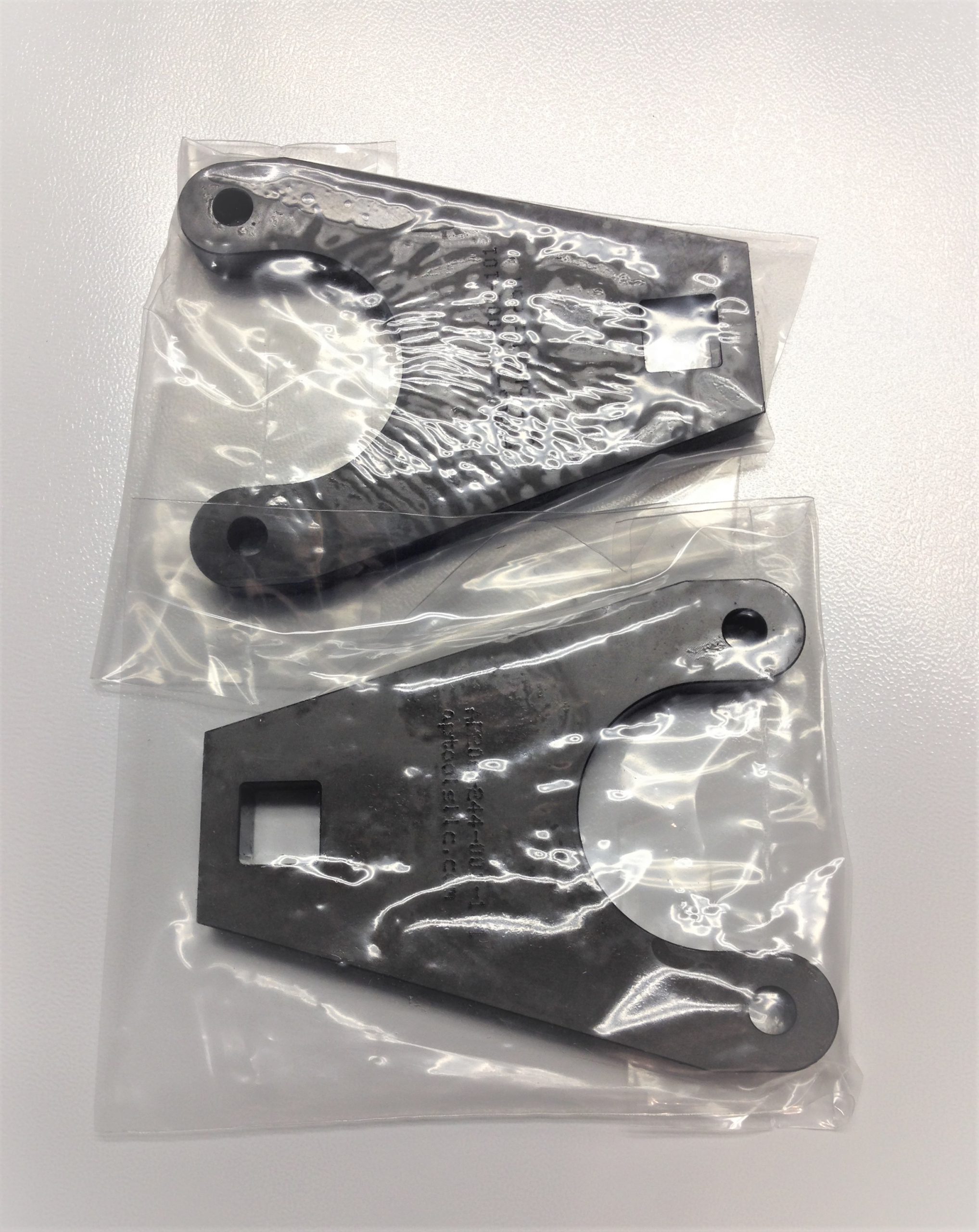

Tail Rotor Bonded Shaft Tool Set
#AP206-244-001-101SET
$259
This is a set of the 2 required torque adapters to comply with ASB 206L-20-184 and ASB 206-20-139. They are built with the highest quality out of solid steel, and phosphated for corrosion protection. C of C available on this item upon request. Reference P/N 206-244-001-101 | Bell
Interested in this product or want more information? Contact us.
Tail Rotor Bonded Shaft Tool
#AP206-244-001-101
$129
This is one individual torque adapter from the set above, used to comply with ASB 206L-20-184 Rev C in conjunction with the new workaid in Rev B, which is the 30″ holding tool below. C of C available on this item upon request. Reference P/N 206-244-001-101 | Bell
Interested in this product or want more information? Contact us.

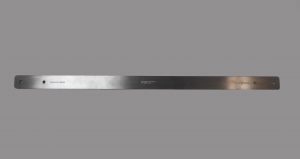

206-040-373 / 206-040-328 Sliding Adapter Work Aid
#ASB206L-20-184-1
$178
Revision B of ASB206L-20-184 introduces a new work aid to hold the forward end of the sliding adapter 206-040-373 used with the forward short shaft 406-040-315-111. The new work aid is not procurable and is only locally manufactured. C of C available on this item upon request.
Interested in this product or want more information? Contact us.

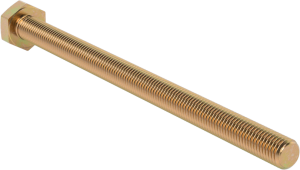

Jack Screw Set
#AP-BEL630-4
$150
Used to assemble and disassemble the main transmission and the tail rotor gearbox. Our jack screws will exceed the strength of the oem jack screws. (set contains 3 each). Reference P/N T101308 | Bell
Interested in this product or want more information? Contact us.

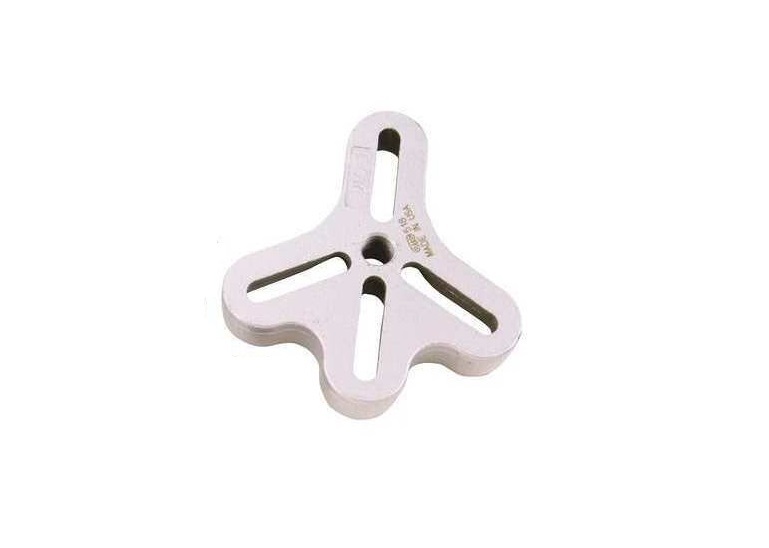

Oil Pump Puller
#APOTCNO518
$178
Used to remove the transmission oil pump assembly. Reference P/N 518 | Bell
Interested in this product or want more information? Contact us.

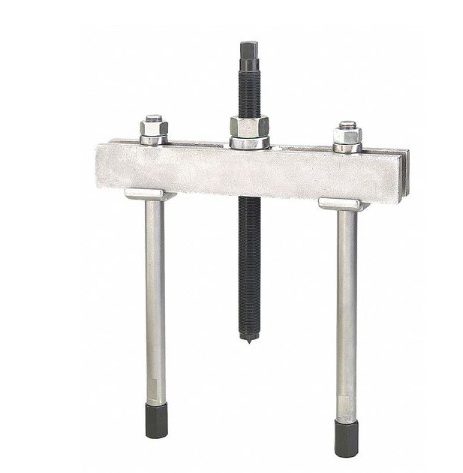

Puller
#AP927
$263
Used to remove and install the main transmission input pinion. Reference P/N 927 | Bell
Interested in this product or want more information? Contact us.

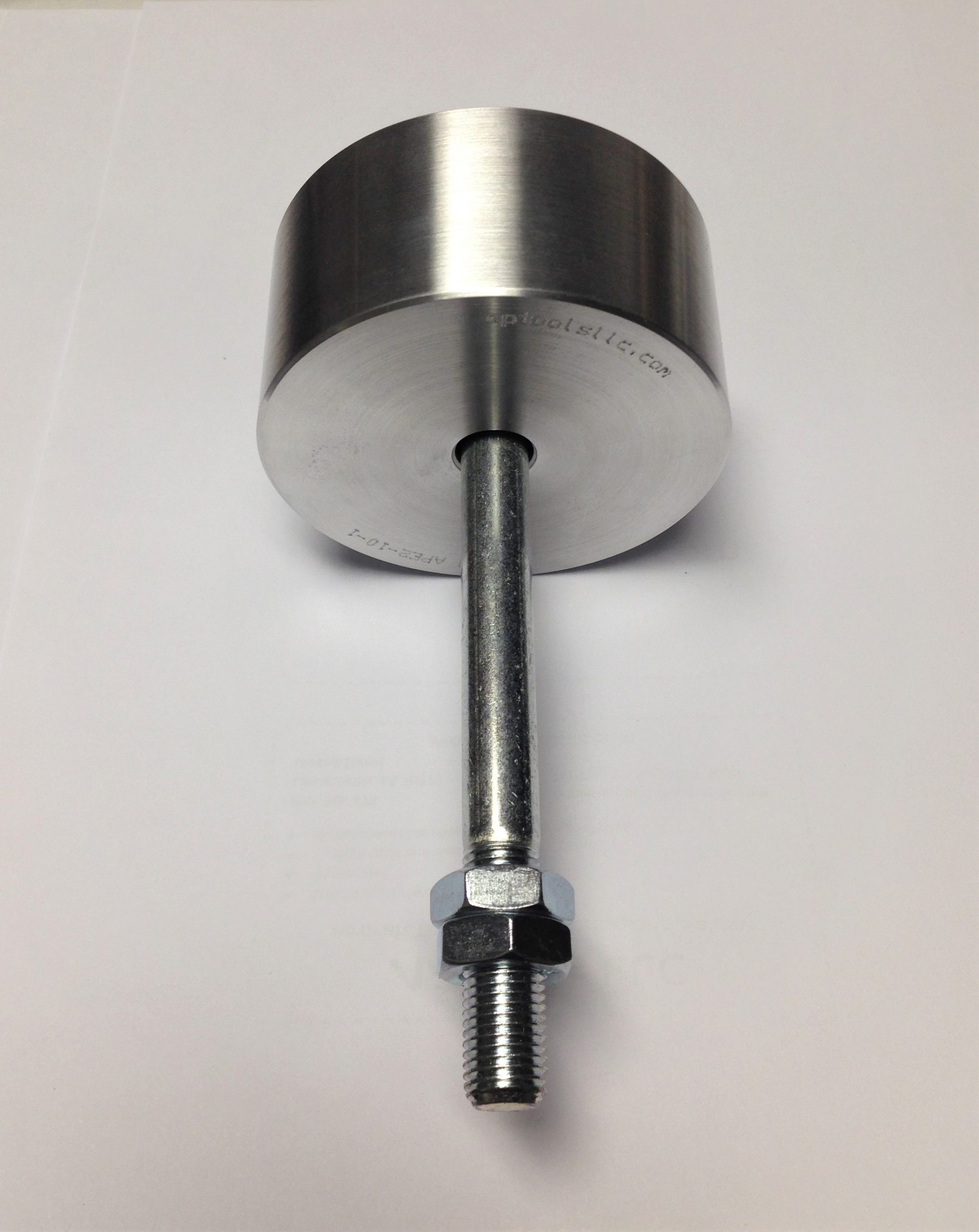

Fuel Pump Cartridge Removal Tool
#APE2-10-1
$168
Built using the OE specifications, this puller will also work to pull any fuel cartridge with 7/16-20 threads. Reference P/N E2-10-1 | Airborne | Parker
Interested in this product or want more information? Contact us.

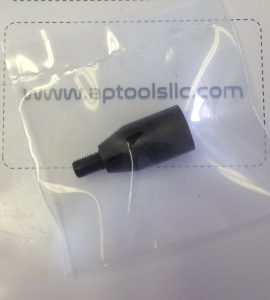

Fuel Pump Cartridge Puller Adapter
#APE2-14-1
$31
Built using the OE specifications, this adapter is used for some disassembly of the fuel pump. Reference P/N E2-14-1 | Airborne | Parker
Interested in this product or want more information? Contact us.
Extraction Syringe
#AP-BEL280-3
$149
Used to defuel or drain fuel from the fuel system. Reference P/N 7075 | Bell
Interested in this product or want more information? Contact us.

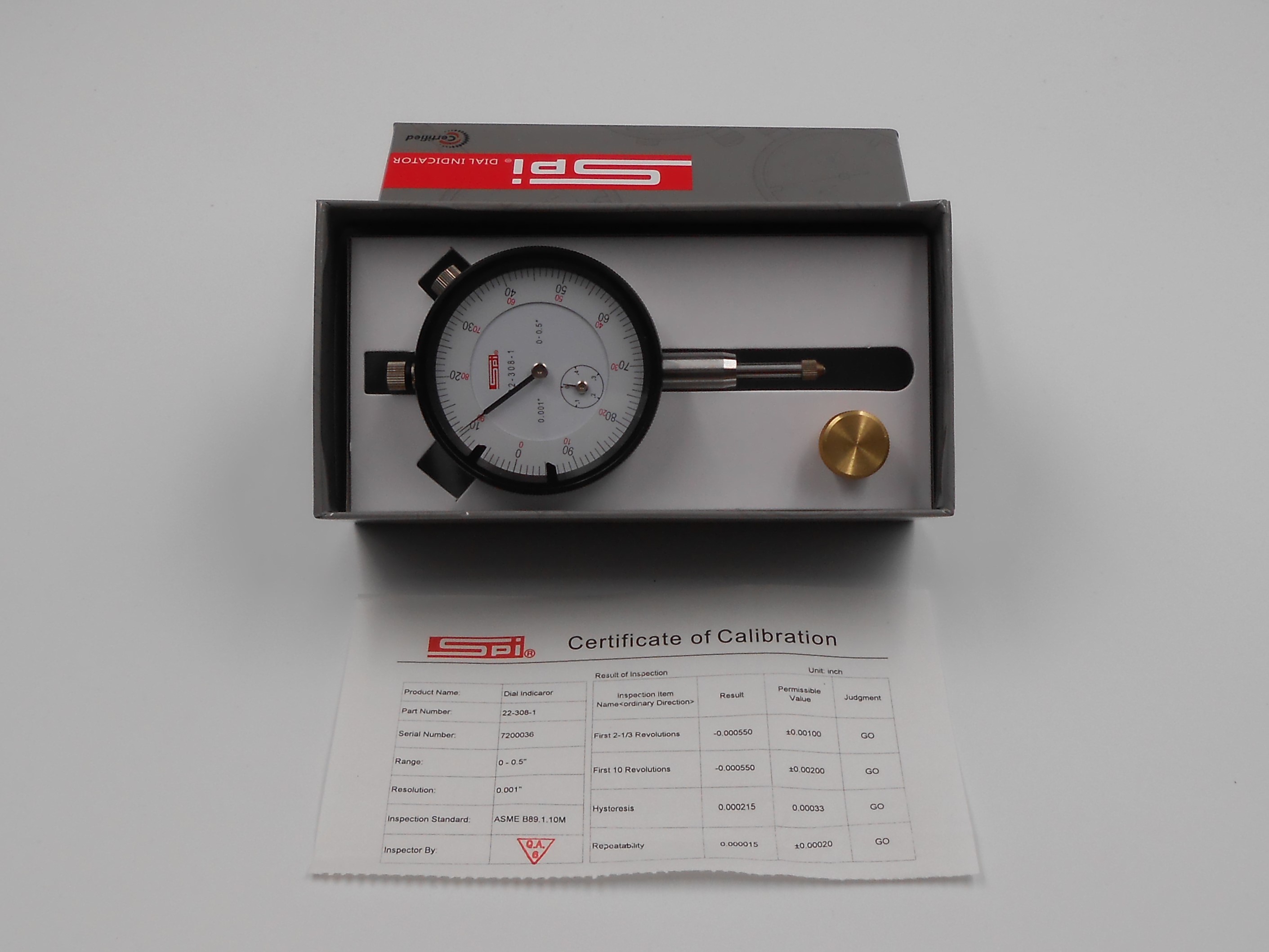

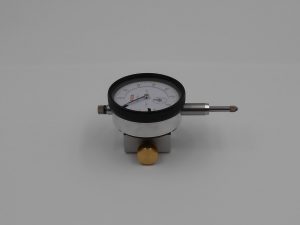

Hydraulic Actuator By-Pass Spool Check Tool
#AP-BEL290-1
$243
Used to comply with the 24 month hydraulic actuator by-pass spool check on B206/407. Comes with a high quality Swiss Precision Instruments (SPI) drop indicator and factory calibration certificate, so it can be put to immediate use. The beam saddle allows the indicator to take a precise measurement directly in-line with the movement, so there are no errors. A soft brass thumb screw firmly holds the tool in place.
Interested in this product or want more information? Contact us.

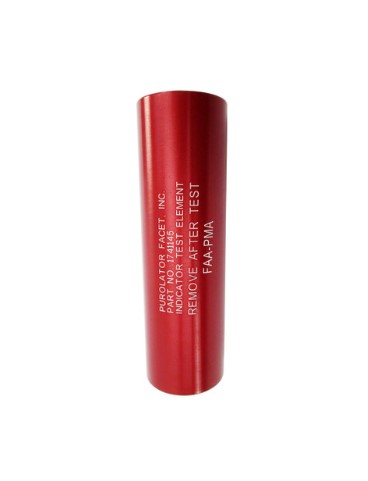

Oil Filter Bypass Indicator Test Tool
#1741145
$175
Used to test the bypass indicator used in the scavenge oil filters. Reference P/N 1741145-01 | Bell
Interested in this product or want more information? Contact us.

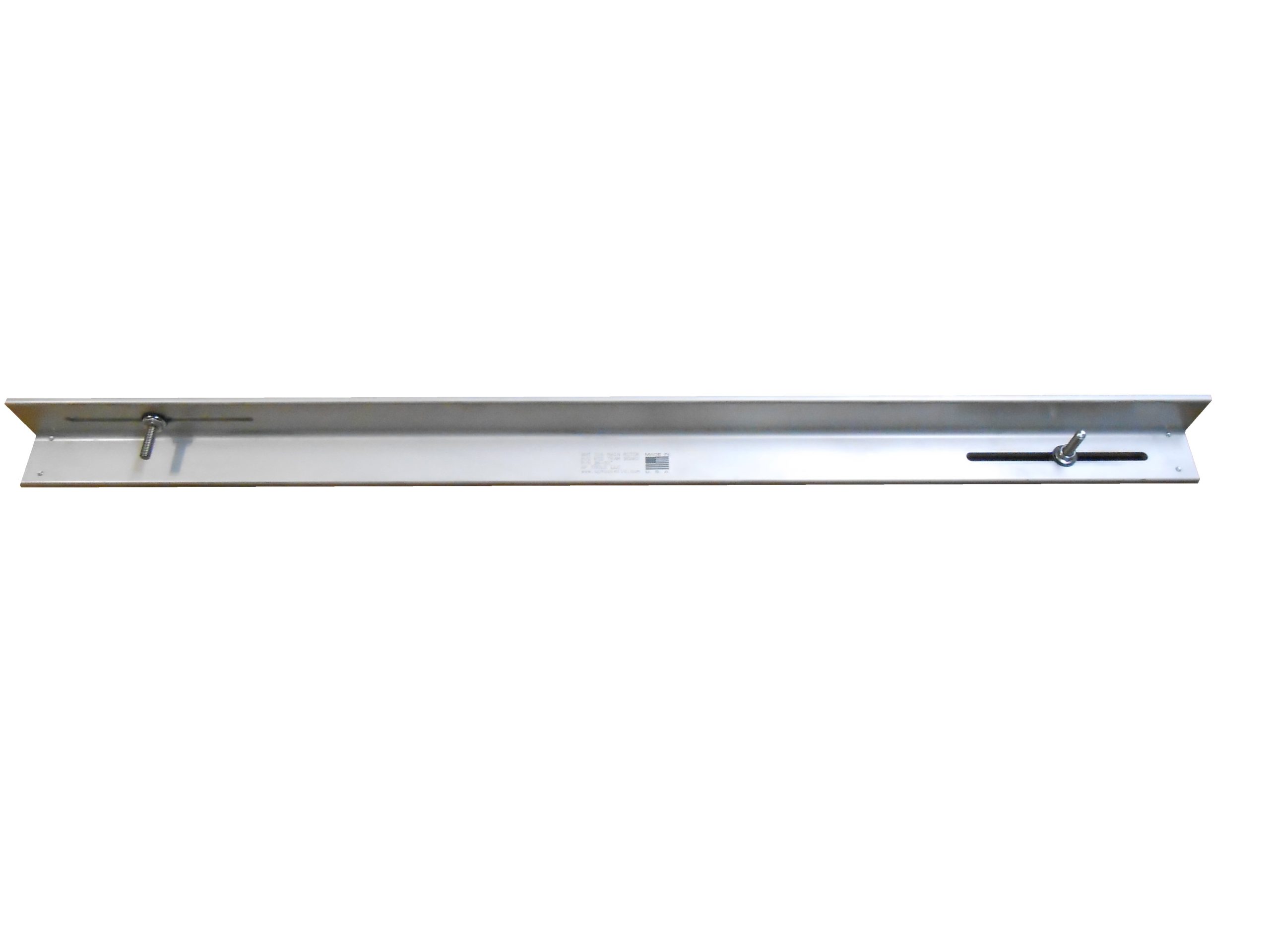

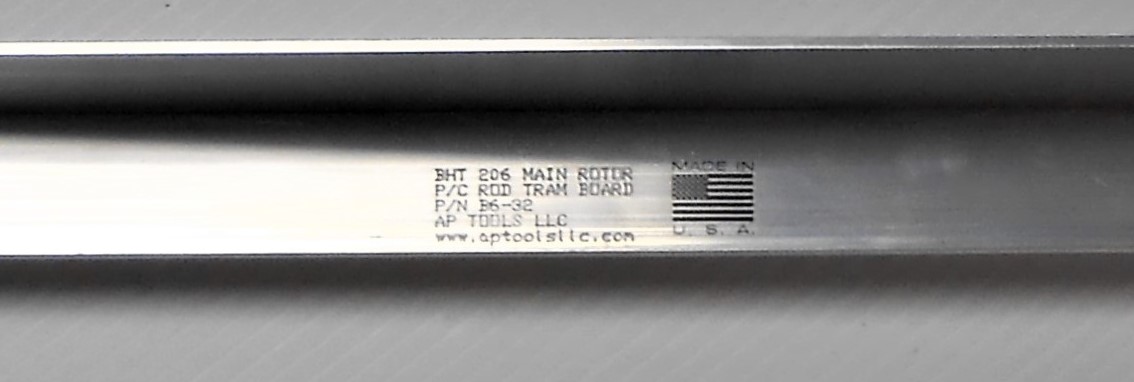

P/C Link Trammel
#B6-32
$319
We’ve taken the Bell specifications for the main rotor pitch change link adjustment workaid and improved upon it to accommodate all BHT 206 series aircraft. The fixture is heavy duty 36″x2″x2″ aluminum and incorporates rubber feet.
Interested in this product or want more information? Contact us.

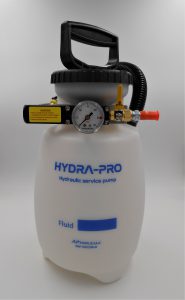

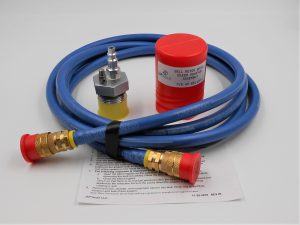

Premium Hydraulic Rotor Brake Servicing Package
#AP-BEL120-1PKG
$454
With this complete package, you will be able to bleed rotor brakes faster, by yourself, and if using our Hydra-Pro, less frequently. This is due to the Hydra-Pro’s filtered fluid prolonging the life of the hydraulic internals. What’s included? A Bell 205 / 206 / 212 / 407 / UH1 rotor brake servicing bleed adapter, Hydra-Pro servicing pump (10 micron), and 10’ hose with quick disconnect couplers that meet MIL-C-4109. The unique adapter has a push button bleed valve, and an anti-emulsification tube that also acts as a volumetric spacer to prevent over-servicing, and the resulting mess when removing it from the master cylinder. This enables one person to bleed the brake and leave the master cylinder serviced to “full” without any mess. It will work with any 125 max psi pump, but was designed to be used with our Hydra-Pro (Included).
Interested in this product or want more information? Contact us.
Starter / Generator Bench Block
#AP-GOO800-4
$110
The starter / generator is held inverted on the dampener plate bushing for fast brush inspections. It can be rotated by hand 360 degrees easily, without having to wrestle it all over the bench or the flight line. These also feature flats on the sides for use in a vise. Made of solid plastic.
Interested in this product or want more information? Contact us.

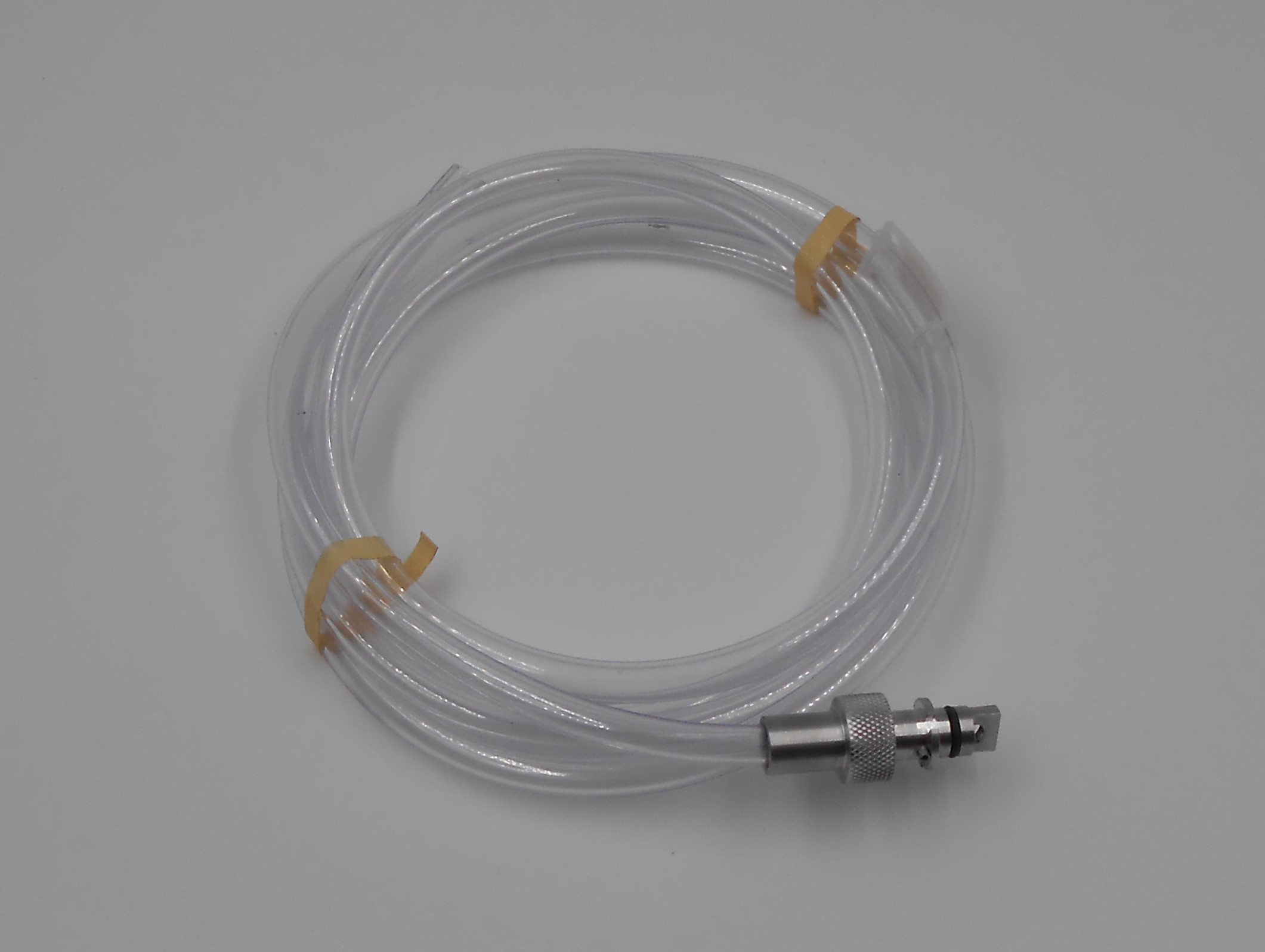

Bell 206 Tail Rotor Gearbox Drain Tool
#AP-BEL650-2
$136
A quality aftermarket drain tool that comes with a mil-spec “O” ring, 7 feet of drain tubing, and ID tag.
Interested in this product or want more information? Contact us.
Bell 206L Main Transmission Drain Tool
#AP-BEL630-2
$136
A quality aftermarket drain tool that comes with a mil-spec “O” ring, 7 feet of drain tubing, and ID tag.
Interested in this product or want more information? Contact us.
Engine gearbox seal wrench OEM
#T101960
$245
Tool is used to remove and install 214-040-241 engine gearbox nut / associated with the freewheeling unit. Applicable to the following Bell Helicopters: 206A/B, 206BIII, 206L, 206L1, 206L3, 206L4, 214B, 214ST, 407, TH67, 505
Interested in this product or want more information? Contact us.
