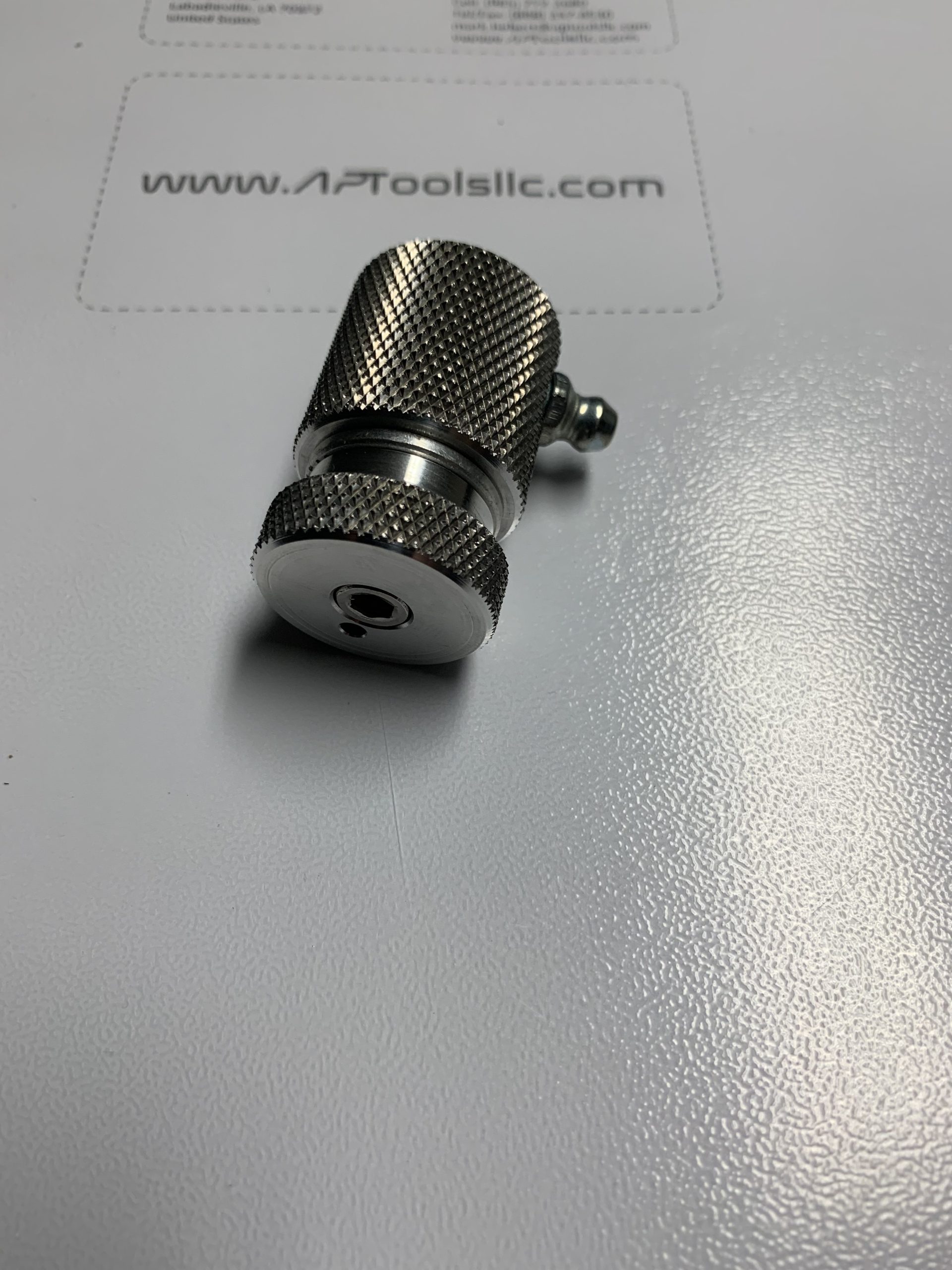

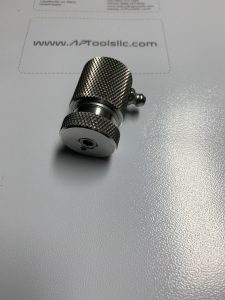

This fixture can be used to lubricate the ¾” flap roller bearings with a simple grease gun. Both large and small flange type bearings can be serviced for periodic maintenance manual requirements. Overall task takes only seconds for a completely lubricated bearing.(Roller bearing not included)

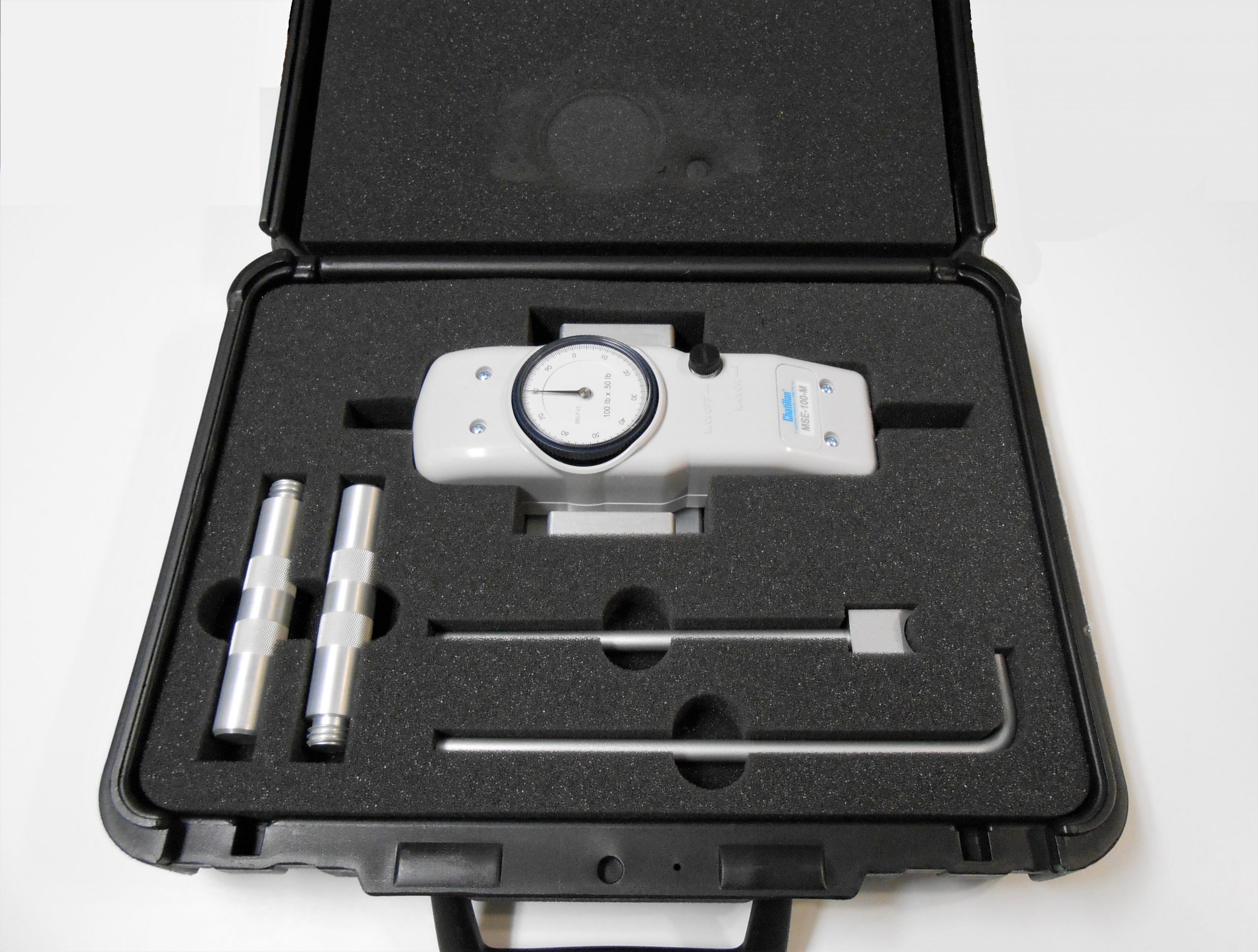

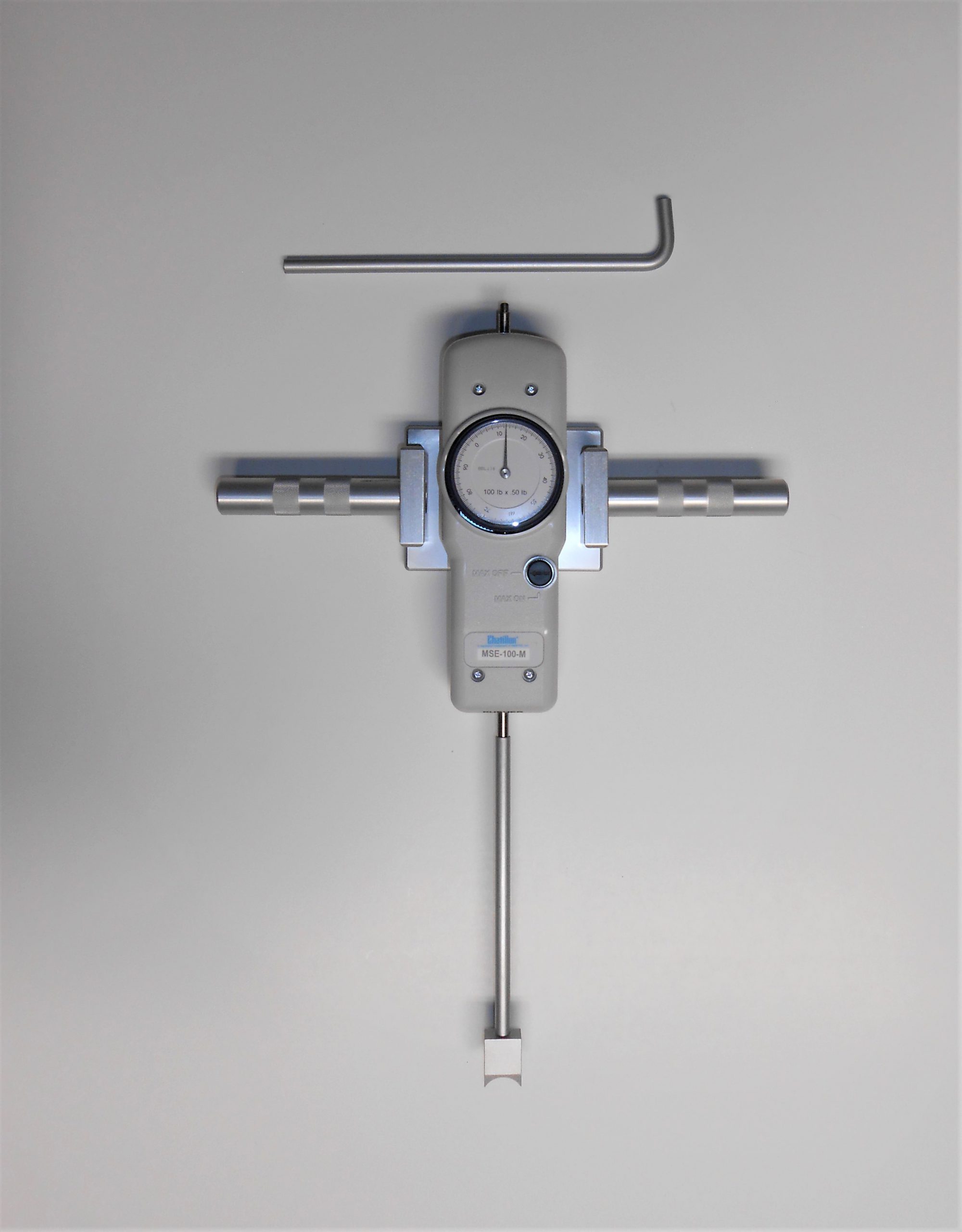

We referenced the OEM specifications for the obsolete Chatillon / Beechcraft tool and incorporated a current production Chatillon model with the puller and pusher rods. This was at the advisement of Textron since the old model scale was discontinued decades ago, but are still required. You will find our new gauge assembly surpasses the quality, accuracy, and capability of the old model. Reference P/N: 45-590074-7 | Beechcraft.

Features the following:

• Calibration traceable to NIST included
• Custom foam storage case
• Mechanical. No batteries or power cords needed
• 1 year warranty
• Repairable and replacement parts available
• Ergonomic handle assembly
• 0-100lb capacity in .5lb increments and ± 0.5% of full scale accuracy
• Max reading hold
• Built to fit and function as the original gauge

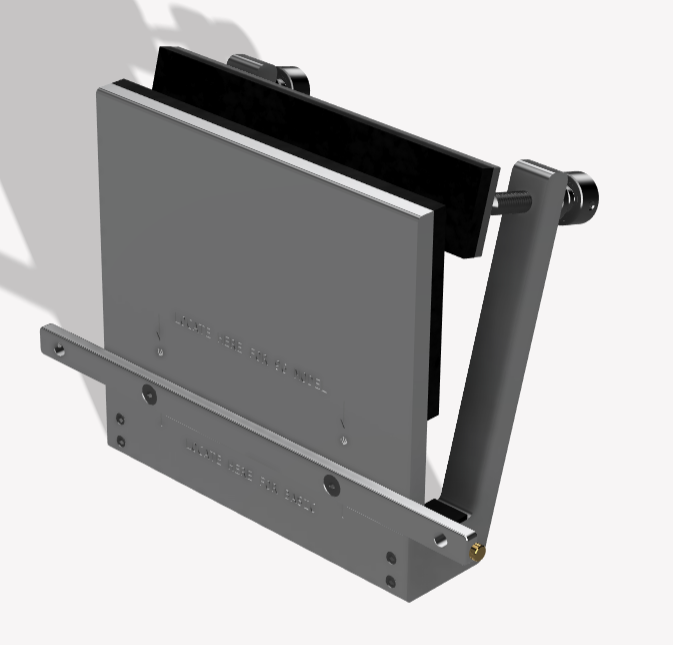

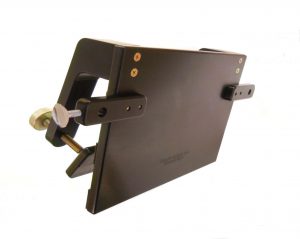

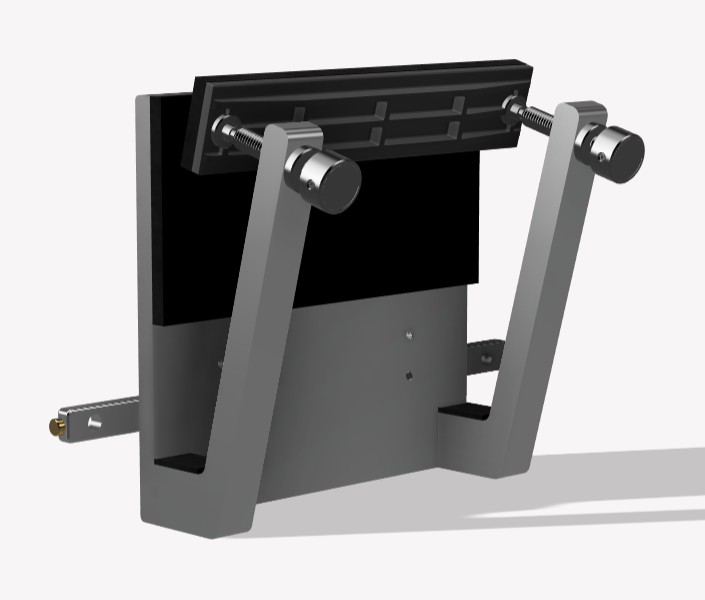

Our fixture is intended to serve as equivalent to Beechcraft part number 45-135030-9/810 in the “basic and -96 setting” under United States CFR § 43.13 Performance rules (general) (a). We accomplished this in the design by referencing the “local manufacture” drawing in chapter 20 of various Beechcraft maintenance manuals, dimensions and observations from actual OEM units, drawings provided by Federal Mhar, and verification of dimensions by Textron. The result is the AP-BEE270-15-X is able to acquire the same (or better) level of precise and accurate, trim tab free play measurements. Note: This is a fixture only. We will be offering the entire kit with a foam fitted case in a few weeks. Reference P/N: 45-135030-9/810 | Beechcraft

Identical to the TS1176/D917 torque adapter, it includes an interchangeable ¾” socket cap in addition to the ½” square drive to accommodate a multitude of sockets in one tool. It can be configured into at least 8 Beechcraft tool part numbers according to Communique No’s 33 and 99-003 (Reference Beechcraft part numbers: TS1176/D917, TS1171-1, 50-590013, TS1176-6, TS1176-7, TS1176-10, TS1171-8, and TS1176-11)

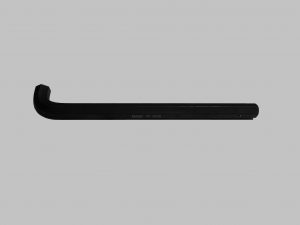

This can be used to torque the hex wing attachment bolts. (The head of this wrench is the shortened version) Reference P/N: TS1222-5, 50-590012 | Beechcraft
